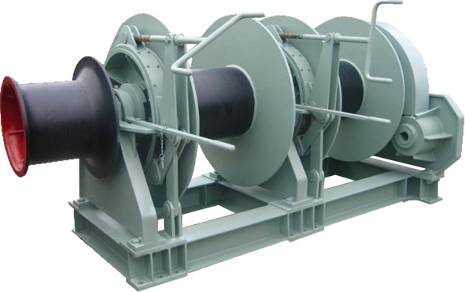

Various types of windlass and mooring winch are widely used in all kinds of vessels, the design and manufacturing capacity of windlass’s chain diameter have reached dia120, the design and manufacturing capacity of mooring winch have reached 1500kn, mooring capstan’s design and manufacturing capacity reaches 300kn, the ship’s DWT is from 1000DWT to 300000DWT. The power source is either hydraulic or electric drive. Products successfully absorbed the experience of cooperation with foreign manufacturers makes the products more convenient to operate, the performance more reliable and the technical content of products is in the leading position in the international market.

Model	Dia. of anchor chain	Working load(KN)		Overload Rally(KN)		Holding load(KN)		Nominal speed (m/min)	Drum load (KN)	Nominal speed (m/min)	Rope capacity(m)	Warping load(KN)
		AW2	AW3	AW2	AW3	AW2	AW3
HT-DMA-46	46	89.9	100.5	134.9	150.8	526	753	9	60	10	Φ22×200	50
HT-DMA-50	50	106.3	118.8	159.5	178.2	617	882	9	70	15	Φ24×180	50
HT-DMA-60	60	153.0	171.0	229.5	256.5	870	1245	9	100	9	Φ28×150	80
HT-DMA-66	66	185.1	206.9	277.7	310.4	1040	1488	9	100	12	Φ28×160	100
HT-DMA-70	70	208.3	232.8	312.5	349.2	1160	1660	9	100	15	Φ28×170	100
HT-DMA-78	78	258.6	289.0	387.9	433.5	1416	2026	9	100	18	Φ32×200	125
