Marine Navigation Work Lamp

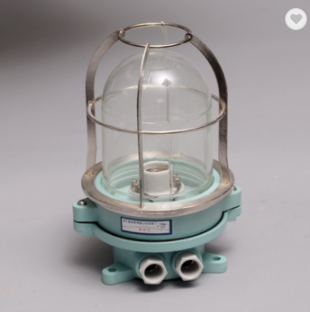

DS7-3M IP56 Marine Navigation Work Lamp
Product Name: Marine Navigation Work Lamp
1.Color: Transparent,red,green,yellow,blue
2.Lamp holder: FE26
3.Protection class: IP56
4.Voltage: 220V Power: 100W
5.Marine Certificate: CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
-
The scope of application:
This series of lights fit for illumination for the ships with water dripping,water spattering,water coagulating and weather place, such as oven cabin,dry cabin,pipe tunnel and weather deck etc. -
Products feature:
The light body adopts synthetic resin by injection molding,nice shape,Cable outside diameter is ∅8~∅10mm,ceiling mounting. -
Adopt standard:
1.COnform to GB7000.201 standard.
2.Conform to GB7000.1 standard.
3.Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
4.Adopt the Japanese JISF8414-2003 standard organization of production.
| Type | DS7-3M | DS7-4M | |
| International Code | 792059 | 792060 | 792062 |
| Voltage(V) | 220 | ||
| Lamp holder | FE26 | ||
| Light source/Power(W) | Incandescent lamp/100W | Incandescent lamp/200W | |
| Color | Energy-saving lamp/12W | Energy-saving lamp/18W | |
| Protection Class | Transparent; Red; Green; Yellow; Blue | ||
| Weight(kg) | 2.5 |
2.8 |
|
